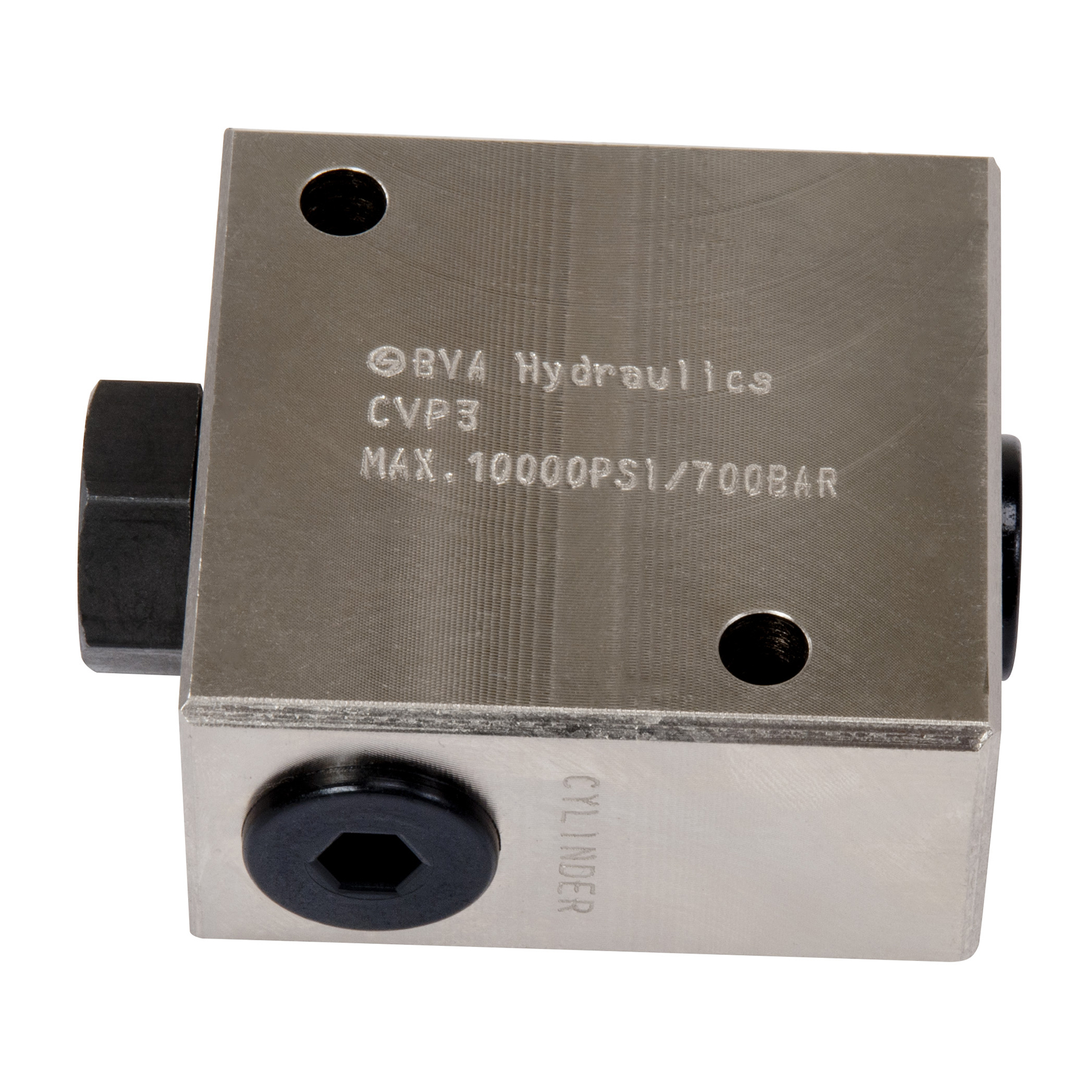

CVP3
PILOT OPERATED CHECK VALVE
Specifications
| Casepack | 4 EA |
|---|---|
| Delivery Weight | 3.51 Lbs |
| Commodity | VALVE |
| Item Dimensions | 3.48" x 2.95" x 1.50" EA |
| Item Weight | 3.21 Lbs |
| Carton Dims | 10.24" x 7.87" x 6.30" |
| Delivery Cube | 0.3 |
| Capacity | 10000PSI |
• Mounted in line to a cylinder and will hold pressure in the cylinder in the event of pressure loss in the system. Most often used on double-acting cylinders with pilot port receiving pressure from a tee off of the cylinder retracting line. Pilot pressure ratio 15% or 6.5:1 Max. Working Pressure: 10,000 PSI
