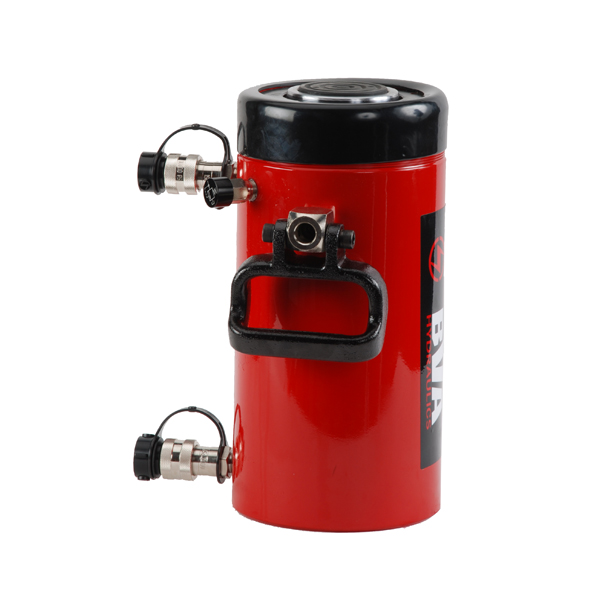

HD7513
75 TON 13" STROKE D/A HYD CYLINDER
Specifications
| Casepack | 1 EA |
|---|---|
| Delivery Weight | 152.4 Lbs |
| Commodity | CYLINDER |
| Item Dimensions | 33.82" x 9.29" x 5.79" EA |
| Item Weight | 136.8 Lbs |
| Carton Dims | 25.37" x 11.50" x 12.50" |
| Delivery Cube | 0.6729 |
| Capacity | 75T |
• Internal plunger threads • Rod wiper seals out dirt and contamination • High strength steel construction from gun drilled solid bar • High flow 3/8” NPTF couplers • Collar thread protectors • One piece high grade alloy bearing for side load protection and long life • Polyurethane cup seal provides for optimum performance • Industrial hard chrome plated ram helps prevent rust and corrosion • Solid steel cylinder body • Ideal for pushing and pulling • Maximum working pressure: 10,000psi/ 700 bar
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Pricing and availability are shown in the distributor portal.
