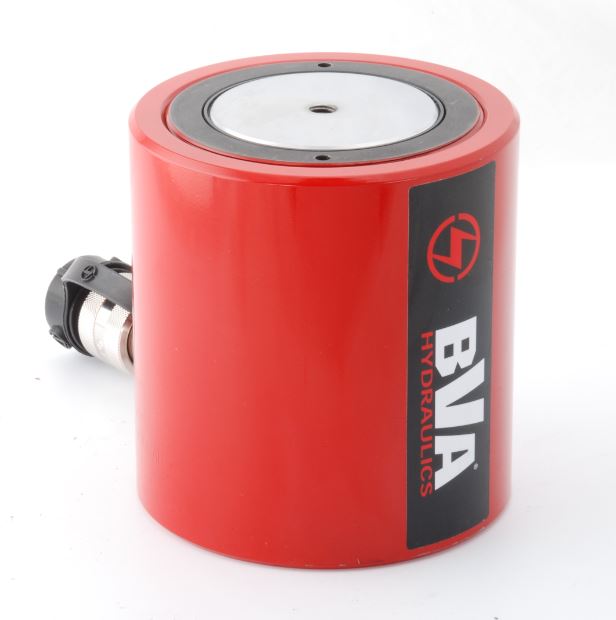

HL6003KK
60 TON 3" STROKE LOW PROFILE CYLINDER
Specifications
| Casepack | 2 EA |
|---|---|
| Delivery Weight | 29.22 Lbs |
| Commodity | CYLINDER |
| Item Dimensions | 5.63" x 8.58" x 5.26" EA |
| Item Weight | 27.94 Lbs |
| Carton Dims | 13.50" x 10.94" x 8.31" |
| Delivery Cube | 0.71 |
| Capacity | 60T |
• Capacity: 60 Tons Stroke: 2.5" Cylinder Effective Area (in2): 12.57" Internal Pressure at Capacity (psi): 10,183 Oil Capacity (in3): 31.4" Weight (lbs): 45.4 Collapsed Height: 5.63" Extended Height: 8.13" Cylinder Bore Diameter: 4" Outside Diameter: 5.26" Rod Diameter: 3.15" Thread (mm): M5 Thread Depth: .32
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Pricing and availability are shown in the distributor portal.
