HLN10010

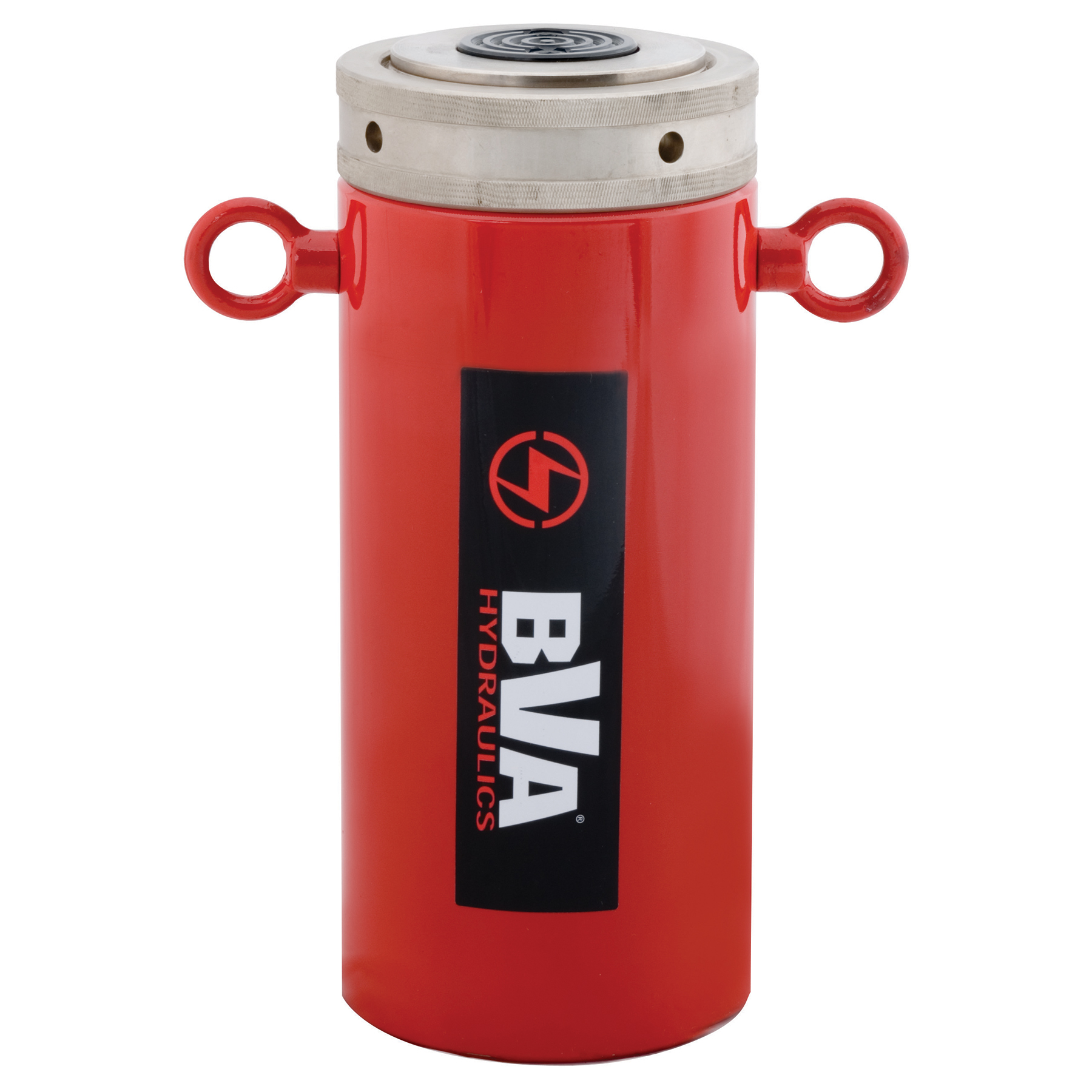

100 TON 10" STROKE S/A LOCK NUT HYD CYLINDER
Specifications
| Casepack | 1 EA |
|---|---|
| Delivery Weight | 156.36 Lbs |
| Commodity | CYLINDER |
| Item Dimensions | 15.24" x 11.28" x 8.88" EA |
| Item Weight | 140.8 Lbs |
| Carton Dims | 22.56" x 14.72" x 13.74" |
| Delivery Cube | 2.6408 |
| Capacity | 100T |
• Single acting cylinder with mechanical safety lock nut • Designed to support load for extended periods without hydraulic pressure • Overflow port prevents cylinders from over travel • Load return • Solid steel cylinder body • Ideal for lifting and holding loads • Maximum working pressure: 10,000 psi / 700 bar
