HLN5502

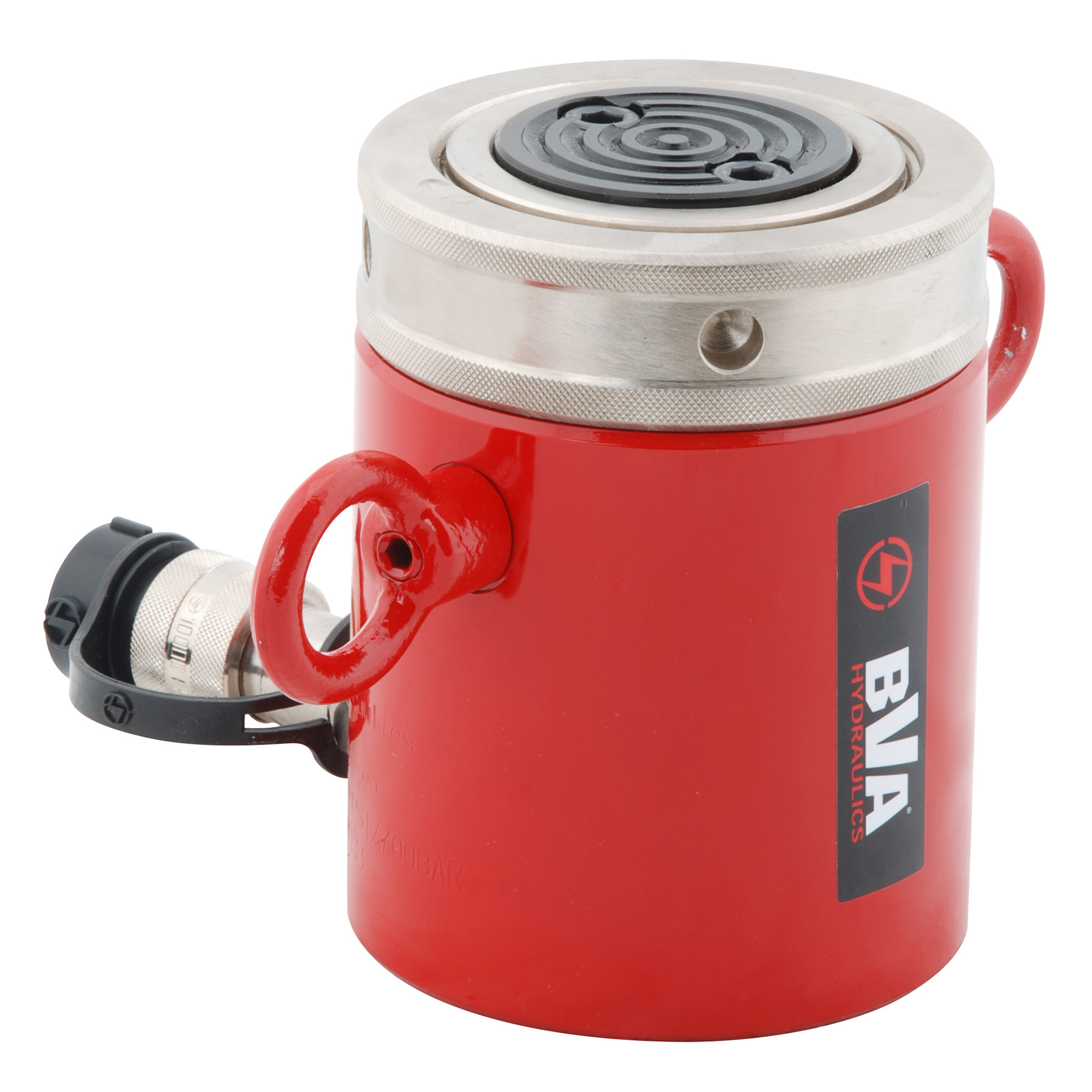

55 TON 2" STROKE S/A LOCK NUT HYD CYLINDER
Specifications
| Casepack | 1 EA |
|---|---|
| Delivery Weight | 35.69 Lbs |
| Commodity | CYLINDER |
| Item Dimensions | 6.46" x 9.70" x 8.24" EA |
| Item Weight | 33.88 Lbs |
| Carton Dims | 11.10" x 8.98" x 8.07" |
| Delivery Cube | 0.47 |
| Capacity | 55T |
• Single acting cylinder with mechanical safety lock nut • Designed to support load for extended periods without hydraulic pressure • Overflow port prevents cylinders from over travel • Load return • Solid steel cylinder body • Ideal for lifting and holding loads • Maximum working pressure: 10,000 psi / 700 bar
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Pricing and availability are shown in the distributor portal.
