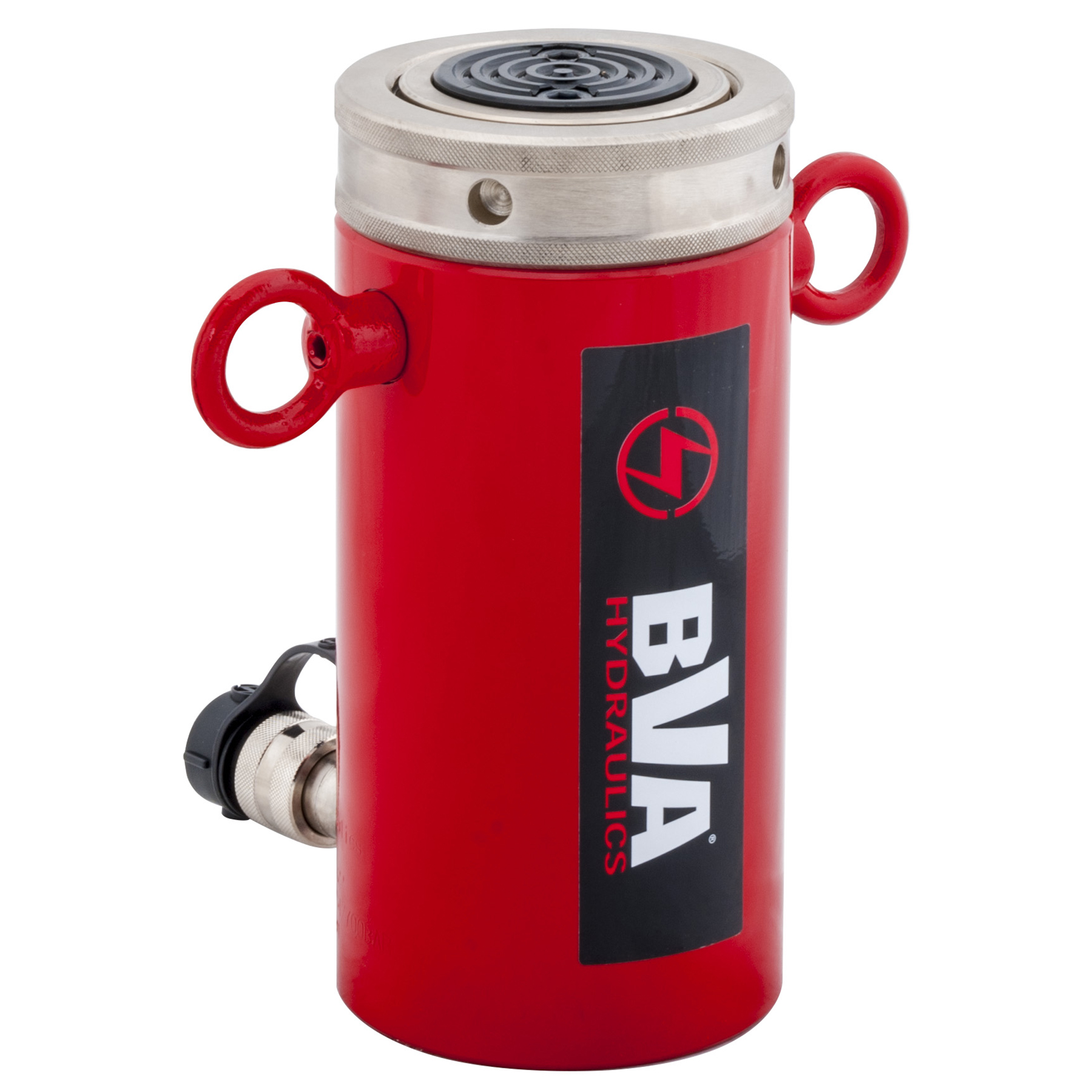

HLN5506
55 TON 6" STROKE S/A LOCK NUT HYD CYLINDER
Specifications
| Casepack | 1 EA |
|---|---|
| Delivery Weight | 68.2 Lbs |
| Commodity | CYLINDER |
| Item Dimensions | 10.39" x 9.70" x 8.24" EA |
| Item Weight | 55 Lbs |
| Carton Dims | 17.13" x 13.70" x 14.61" |
| Delivery Cube | 1.98 |
| Capacity | 55T |
• Single acting cylinder with mechanical safety lock nut • Designed to support load for extended periods without hydraulic pressure • Overflow port prevents cylinders from over travel • Load return • Solid steel cylinder body • Ideal for lifting and holding loads • Maximum working pressure: 10,000 psi / 700 bar
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Pricing and availability are shown in the distributor portal.
